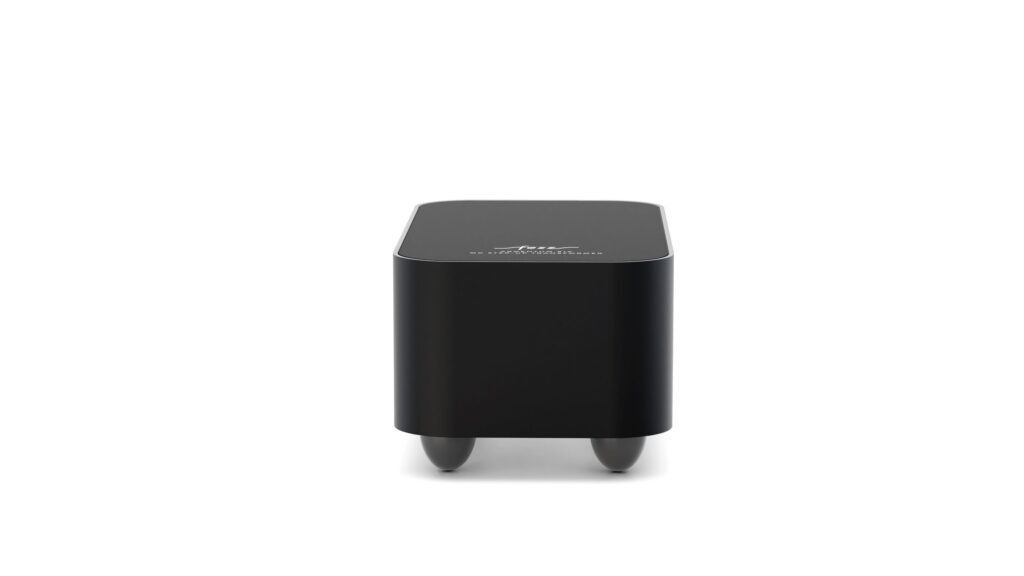

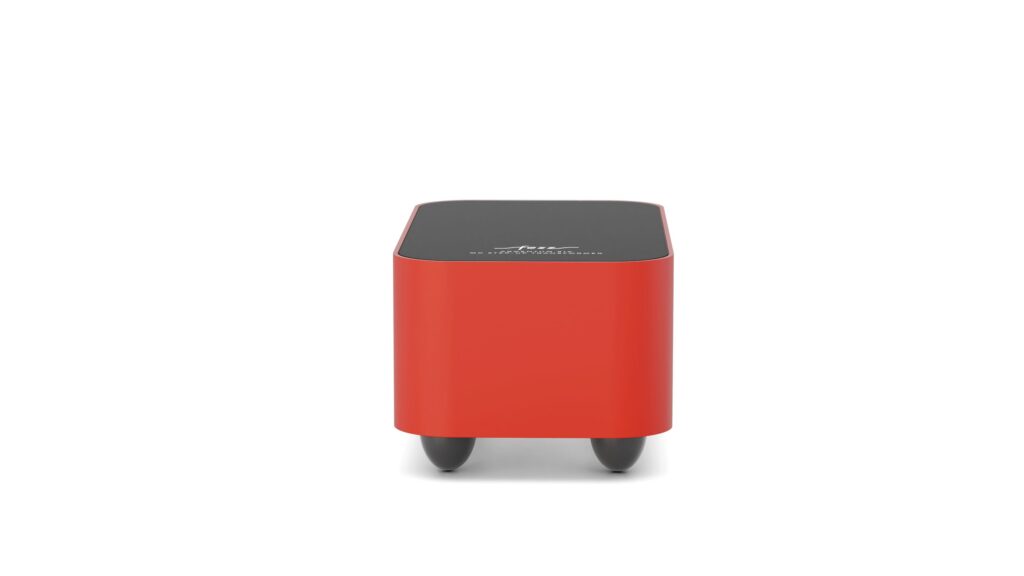

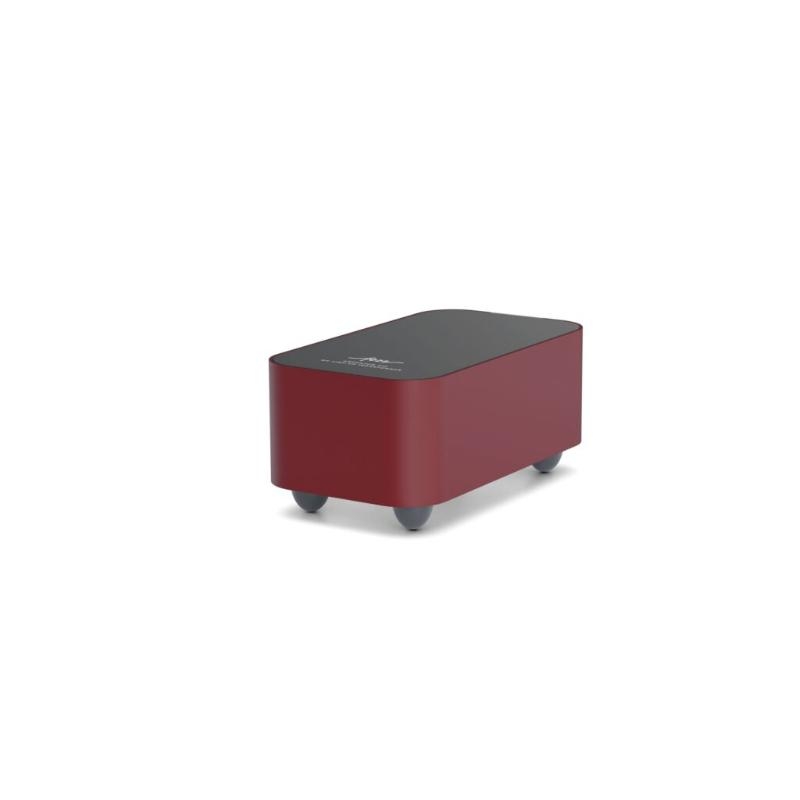

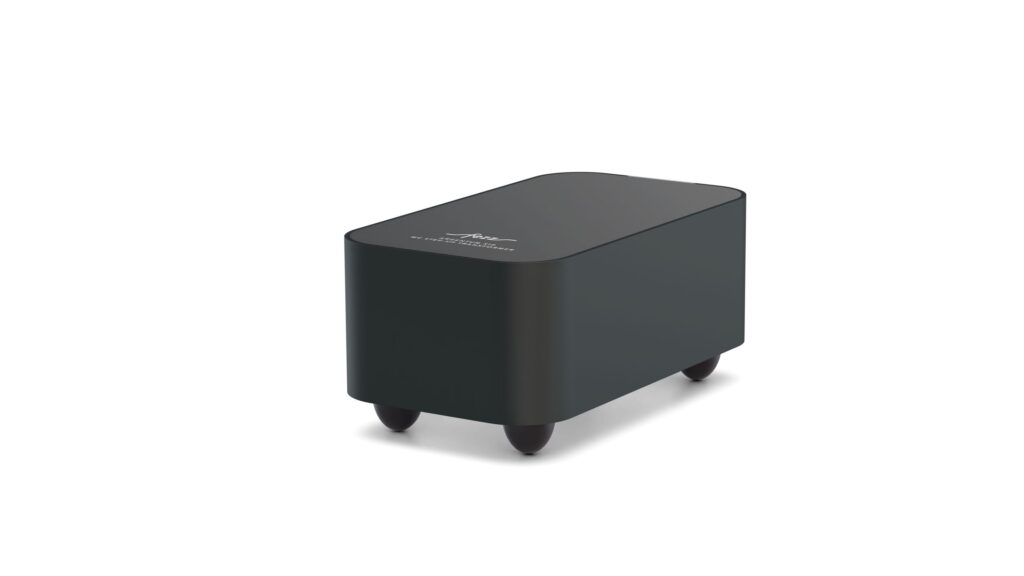

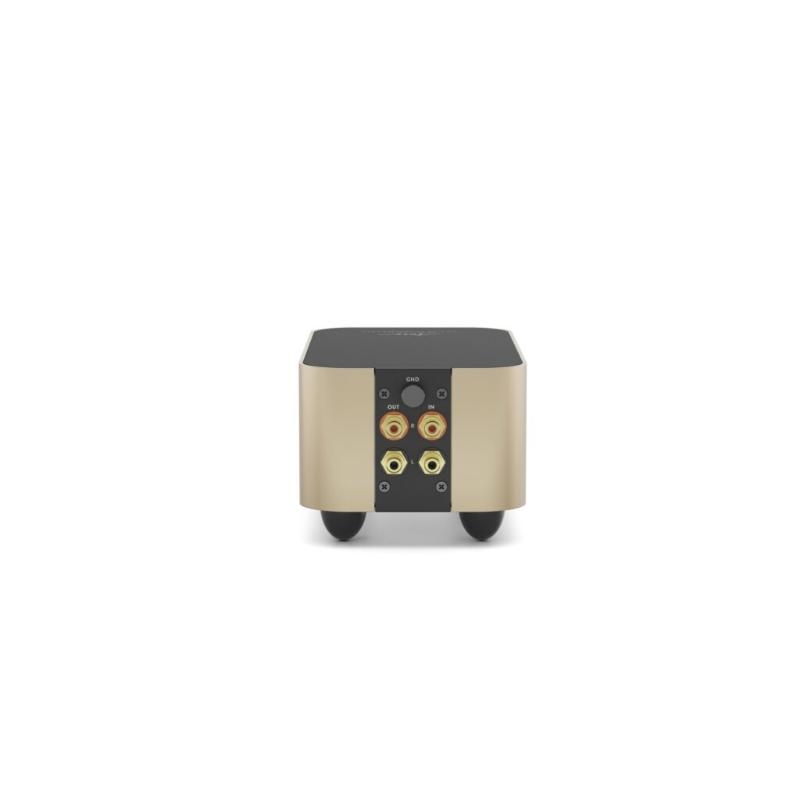

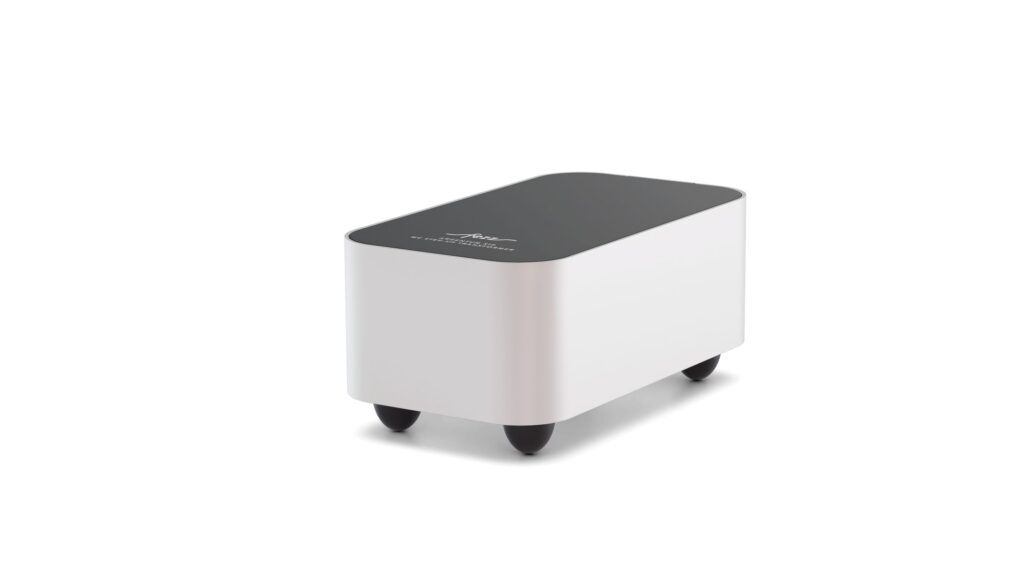

Argentum X20 step-up transformer

  • Argentum X20 step-up transformer
  • Argentum X20 step-up transformer
  • Argentum X20 step-up transformer
  • Argentum X20 step-up transformer
  • Argentum X20 step-up transformer
  • Argentum X20 step-up transformer
商品圖像

  • 商品資訊

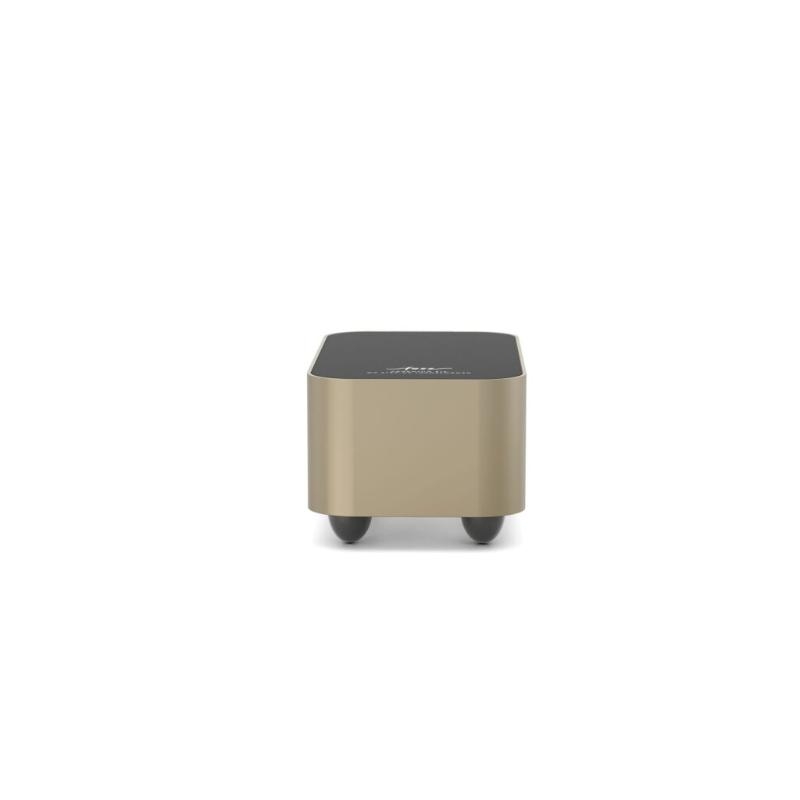

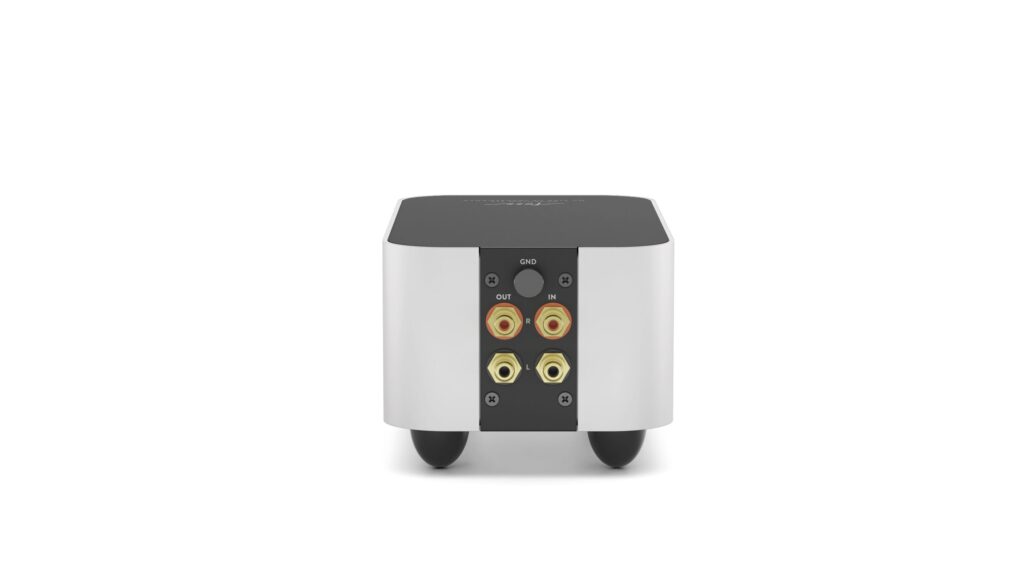

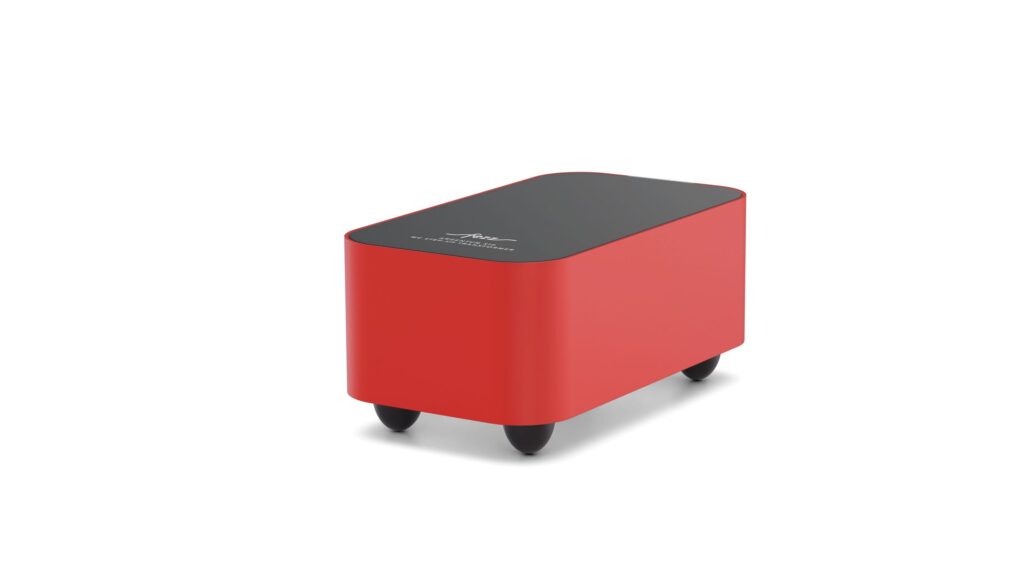

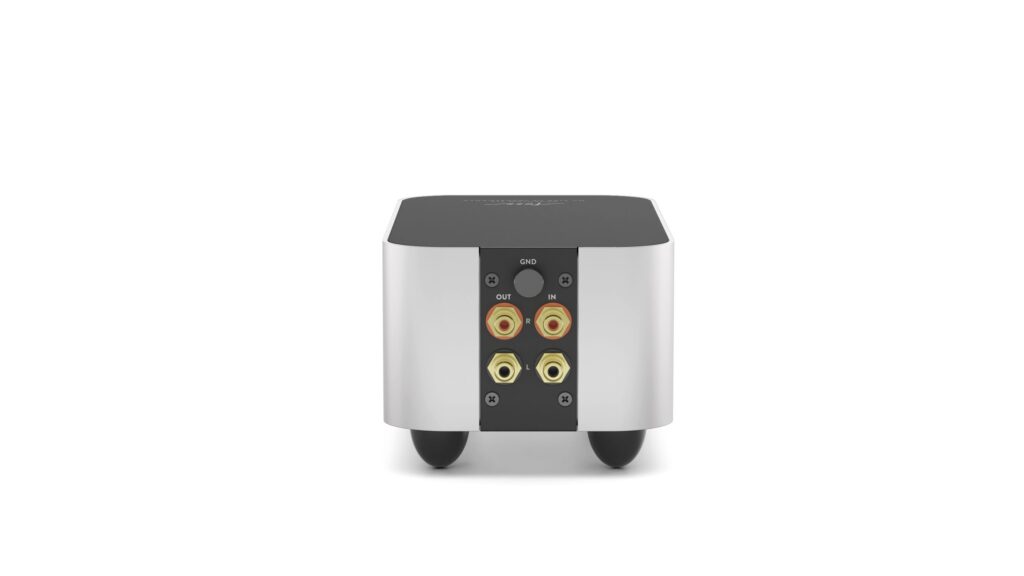

    Argentum is high-end MC step-up transformer.




    Argentum X20 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To the ultimate step-up transformer we have selected the very finest materials: Argentum X20 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 10 Hz to 100 kHz and THD below 0,01% at rated level it is truly beyond compare.
    Fezz Argentum X20 step-up transformer is dedicated for: Ortofon Quintet Black, Quintet Blue, Quintet Bronze, Quintet Red, Quintet Mono, Cadenza Black, Cadenza Blue, Cadenza Bronze, Cadenza Red, Cadenza Mono, Diamond, Verismo, Windfeld Ti, Xpression; Goldring Elite, Eroica LX, Ethos, Legacy; Hana ML, Umami Red, Umami Blue; Dynavector DV-20X2 LO, DV-XX2 MKII, XX-2A MC, Te Kaitora Rua, DRT XV-1s; Lyra Kleos SL, Delos, Etna Lambda, Atlas SL Lambda and other cartridges with impedance 1,5-9 Ω

    Type:
    MC step-up transformer

    Model:
    Argentum X20

    Winding material:
    99,9% pure silver

    Core material:
    nanocrystalline anisotropic high permeability alloy

    Magnetic shield material:
    high permeability mu-metal

    Electric shield material:
    pure OFC copper ribbon

    Step-up ratio:
    1:20 (26 dB)

    Recommended load:
    47 kΩ

    Recommended cartidge impedance:
    1,5-9 Ω

    Total harmonic distortion:
    <0,01%

    Bandwidth:
    10 Hz – 100 kHz (Z = 10 Ω)

    Weight:
    2,5 kg

    Dimensions:
    120 mm x 95 mm x 212 mm
