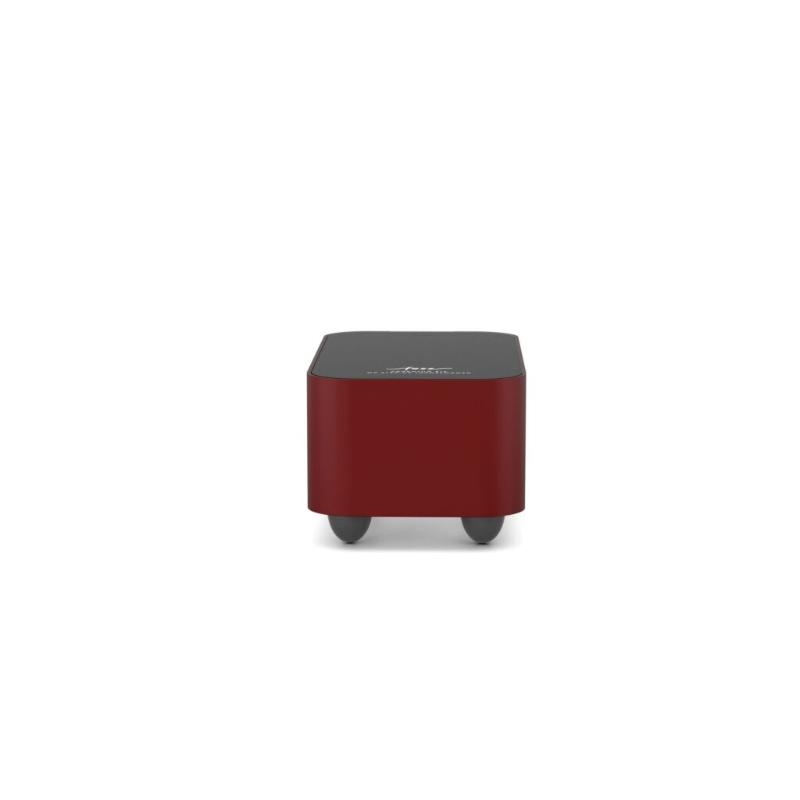

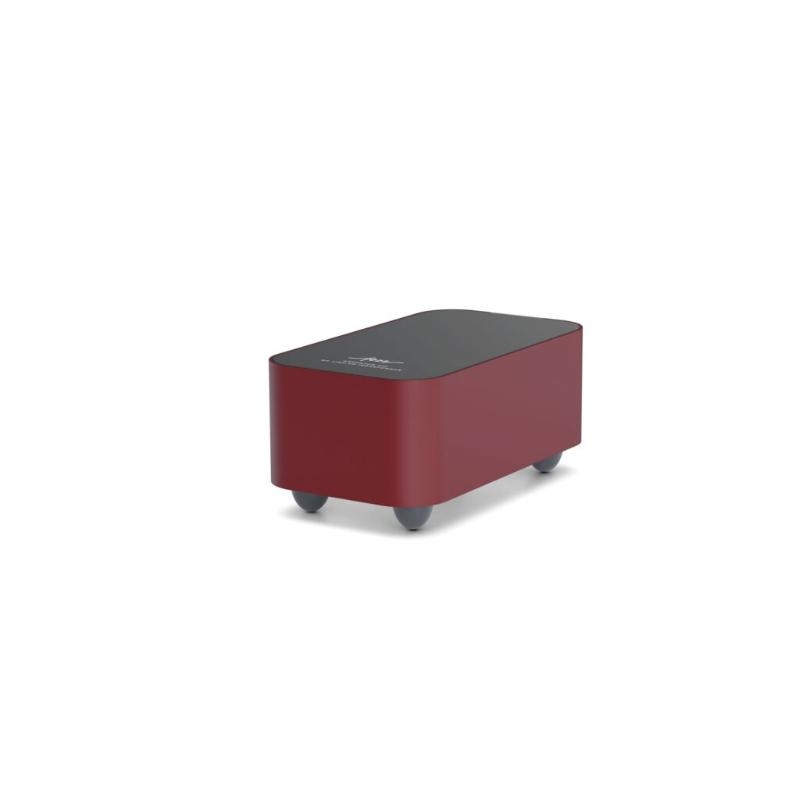

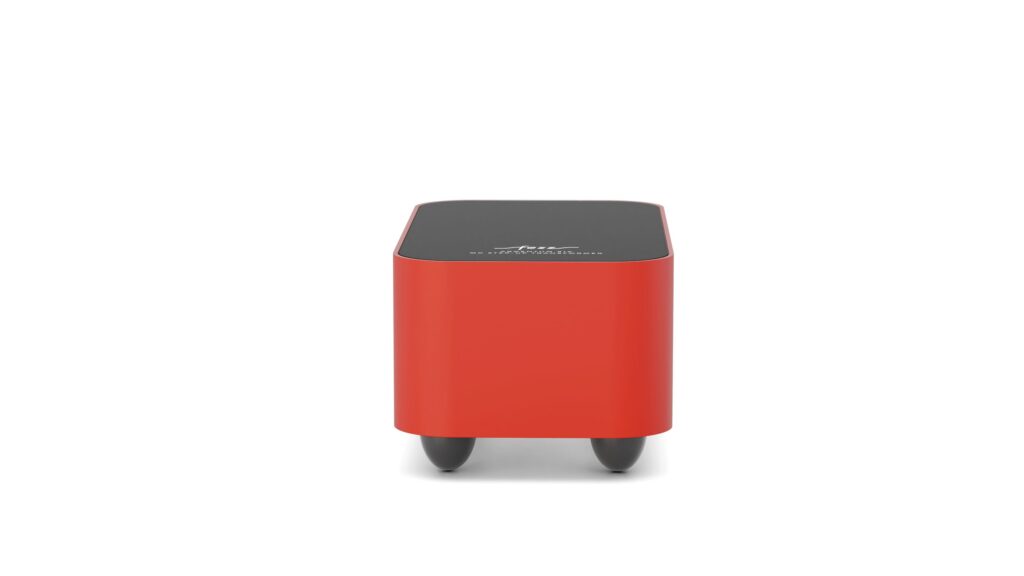

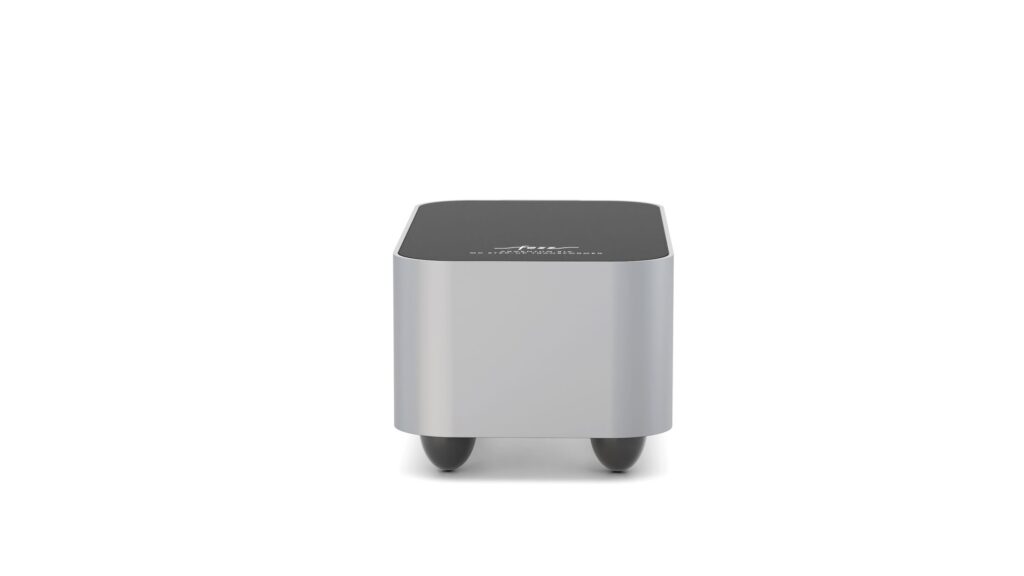

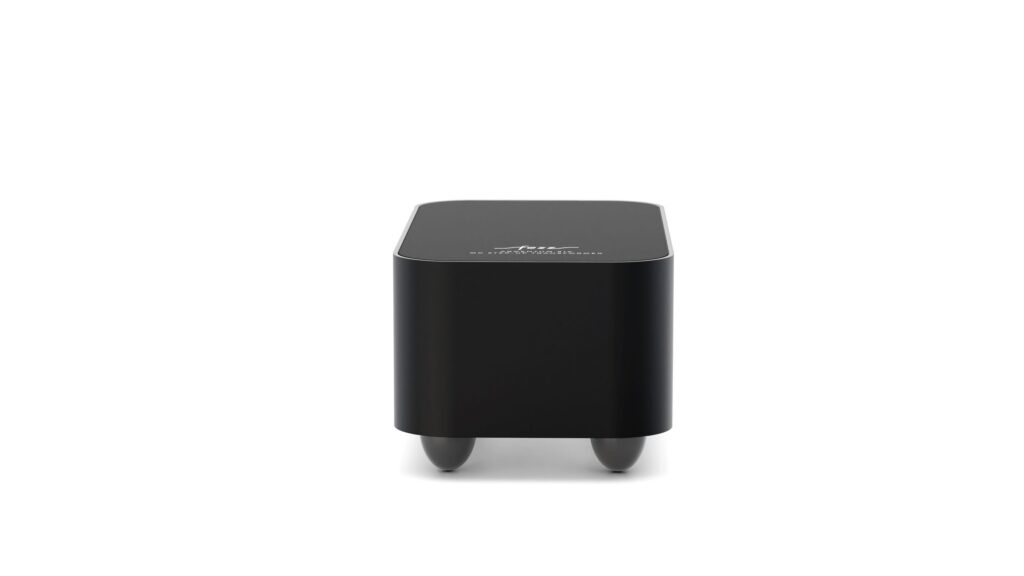

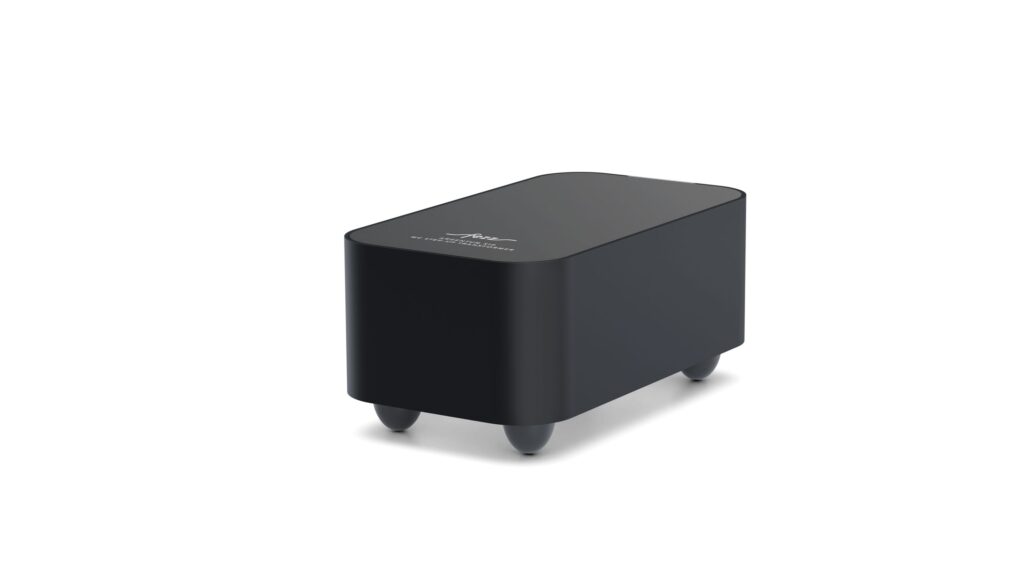

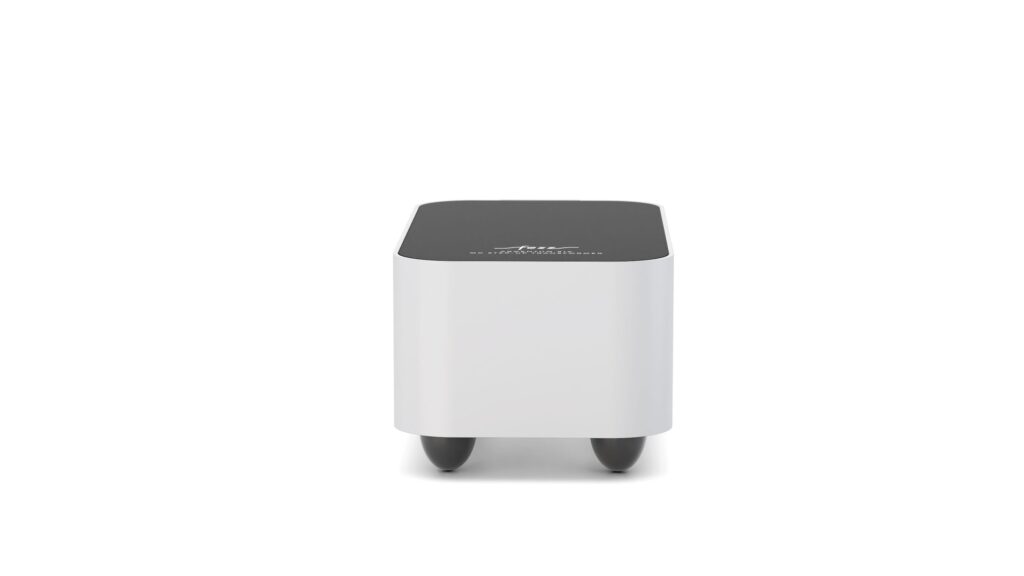

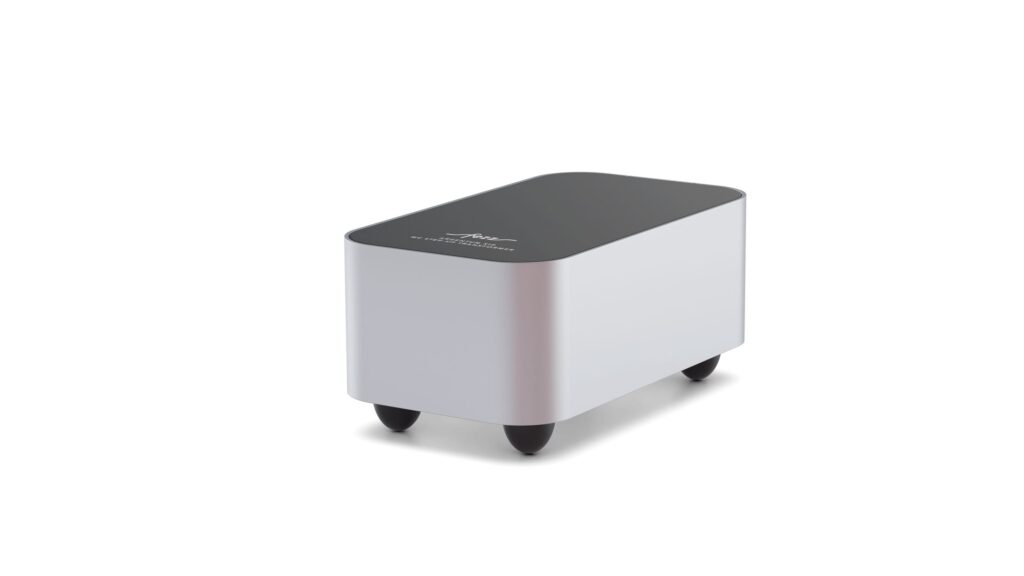

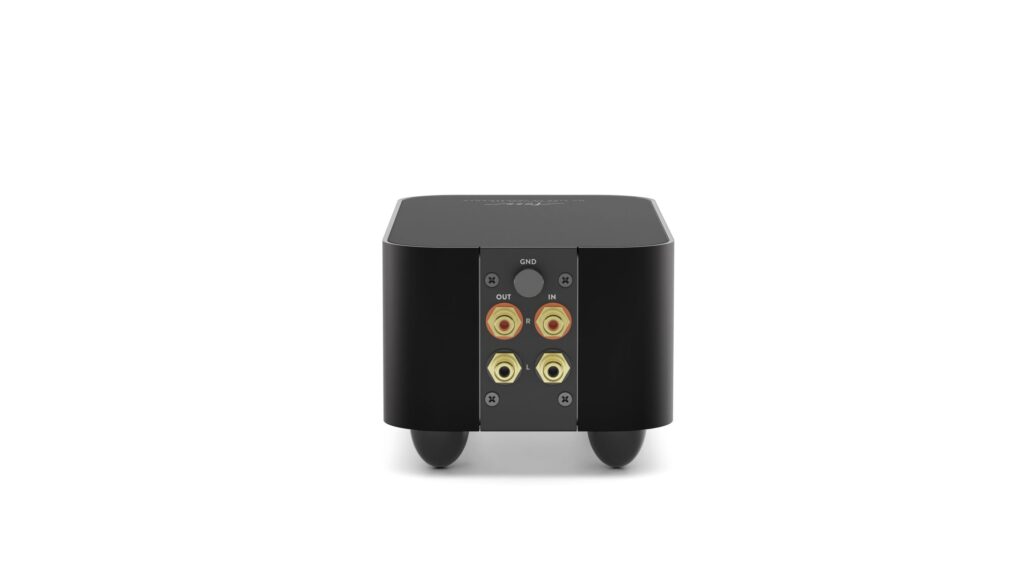

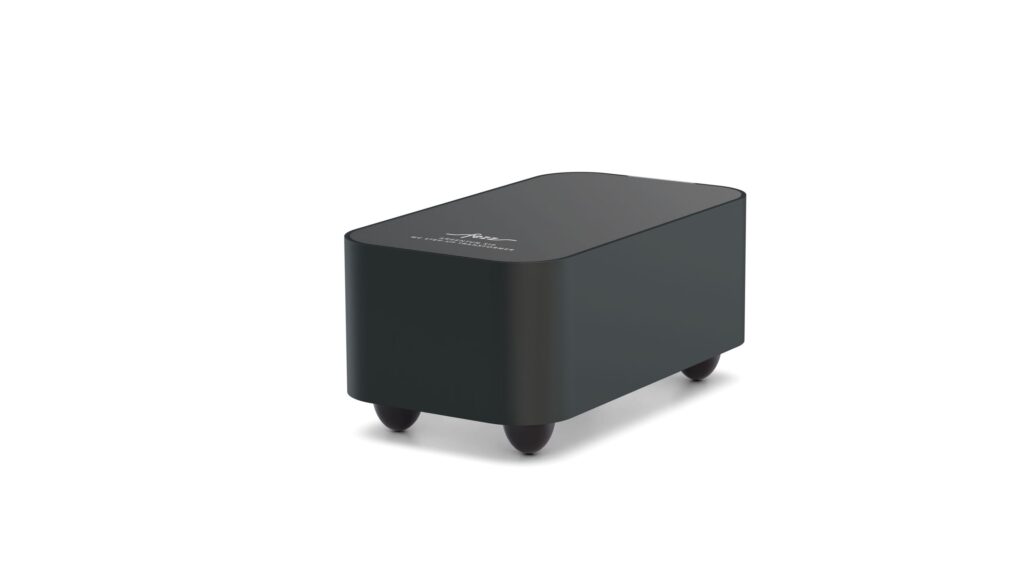

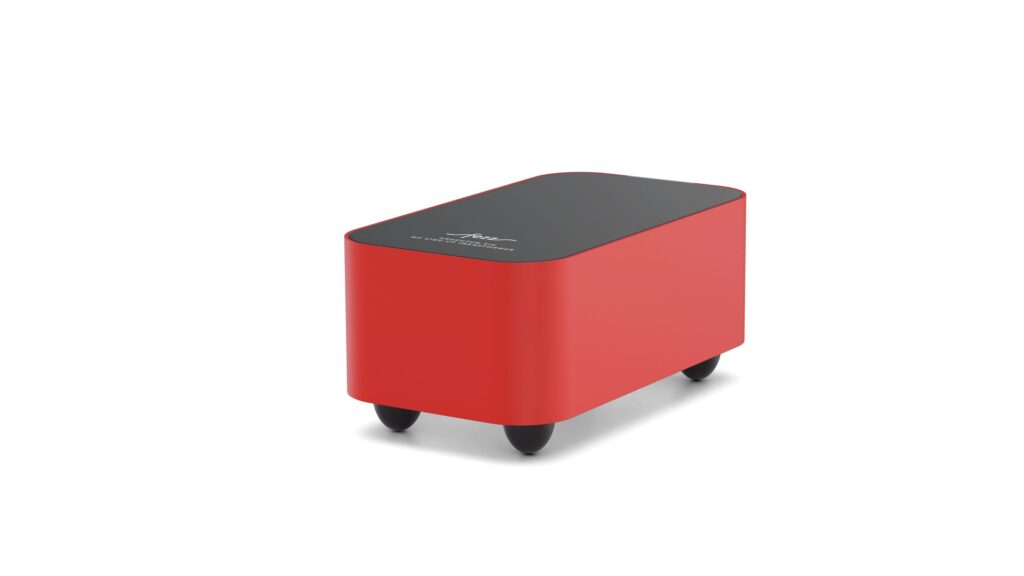

    Argentum X10 is high-end MC step-up transformer.





    Argentum X10 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To the ultimate step-up transformer we have selected the very finest materials: Argentum X10 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 8 Hz to 110 kHz and THD below 0,01% at rated level it is truly beyond compare. Fezz Argentum X10 step-up transformer is dedicated for: Audio Technica AT33EV, AT33SA, AT33PTG II, AT33 MONO, AT-OC9XEB, AT-OC9XEN, AT-OC9XML, AT-OC9XSH, AT-OC9XSL ,AT-ART20, AT-MC2022; Sumiko Blue Point no. 3, Blue Point special Evo 3, Palo Santos Presentation, Celebration 40, Starling, Songbird LOW, Blackbird LOW; Denon 103, 103R; Hana EL, SL, SL Mono; Gold Note Donatello Gold, Machiavelli mk2, Tuscany; Rega Ania; Benz Micro MC Silver, Micro MC Gold, Ace, Glider, Wood, Reference, Ruby, Gullwing, Ebony; Sound-Smith Paua mkII, Zephyr MIMC, Hyperion, Hyperion MKII-MR, Sussurro mk II, Sussurro Gold Limited Edition and other cartridges with impedance 10-50 Ω



    Type:
    MC step-up transformer

    Model:
    Argentum X10

    Winding material:
    99,9% pure silver

    Core material:
    nanocrystalline anisotropic high permeability alloy

    Magnetic shield material:
    high permeability mu-metal

    Electric shield material:
    pure OFC copper ribbon

    Step-up ratio:
    1:10 (20 dB)

    Recommended load:
    47 kΩ

    Recommended cartidge impedance:
    10-50 Ω

    Total harmonic distortion:
    <0,01%

    Bandwidth:
    8 Hz – 110 kHz (Z = 30 Ω)

    Weight:
    2,5 kg

    Dimensions:
    120 mm x 95 mm x 212 mm
